Summary

For frozen meat slicing please contact us for a better solution. We will meet your requirements with a variety of frozen meat processing machines.

Days ago we delivered 1 unit of 4 rolls frozen meat slicer to customer. It’s used for small meat shop slicing meat rolls and beef plate. The machine is made of SUS304 stainless steel. Durable and easy maintenance. We have different sizes available from single roll to 8 rolls.

Our company develops and manufactures automatic meat slicers capable of slicing a variety of frozen meats. These machines are controlled by a PLC manufactured by the internationally renowned Siemens company. The pusher is driven by a hybrid stepper motor or servo motor, allowing the user to adjust the thickness of the slices or rolls during processing.

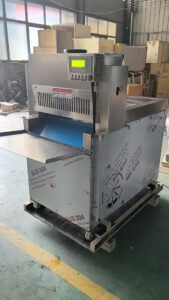

4 rolls frozen meat slicer

The main specifications are as follows:

Power supply: three -phase 380V+ 50Hz (or single-phase  220V)

Working environment: -25-0℃ 15-85%RH not dew， noncorrosive，flammable，explosive, conductive gas, liquid and dust.

Storage environment: -25-70C 15-85%RH without dewing.

Dimensions: our company has automatic cutting machine three models at present, which can also cut two meat roll, four roll and eight rolls， hereinafter referred to as two rolls, four rolls and eight rolls.

Automatic single roll: 680mm x 370mm ×600mm

CNC single roll: 1100mmx400mmx930mm

CNC two rolls: 1450mm × 400mm × 1350mm

CNC four rolls: 1500mm × 760mm × 1350mm

CNC six rolls: 1550 mm × 900mm × 1400mm

CNC 8-roll: 1800mm × 1100mm × 1450mm

Weight:

Automatic single roll: 85kg

CNC single roll: 105kg

CNC two rolls: 180kg

CNC four rolls: 245kg

NC six rolls: 450kg

CNC eight rolls: 600kg

For frozen meat slicing please contact us for a better solution. We will meet your requirements with a variety of frozen meat processing machines.
